Understanding Studio Compression: My Farorite Compressors for Vocal, Drums, and More
🎧 Why Understanding Studio Compression Matters
Compression is one of the most important tools in the recording process, yet it’s one of the least understood by many new engineers and producers. Before you ever reach for EQ or effects, compression helps shape the feel, emotion, and energy of a performance.
Just like a great preamp brings your signal to life, a great compressor keeps that signal controlled, consistent, and musical. Whether it’s smoothing out a dynamic vocal take, tightening up a snare hit, or adding glue to a full mix, the right compressor can completely transform a recording.
In this post, I’m sharing the exact compressors I use in my sessions with live musicians. These are the tools I rely on when recording Jazz, Funk, R&B, and Soul. You’ll learn what I use for vocals, drums, bass, and even full mixes and more importantly, why I use them.
If you’re new to hardware, I recommend reviewing my Essential Guide to Analog Outboard Gear for an overview of how these units fit into a professional signal chain. You can also reference my Compression Settings Guide as you explore your own setup. And be sure to check out the Tools and Resources page for gear I personally use.
Section 2: Vocal Compression
🎤 Vocals Need Dynamic Control, Not Just Tone
When I’m recording vocals in the studio, I’m focused on capturing emotional clarity. That means controlling the dynamic range without killing the energy. Compression helps keep the performance forward, smooth, and musical, especially for singers who shift volume and intensity from phrase to phrase.
These are the three compressors I reach for most when tracking or mixing vocals.

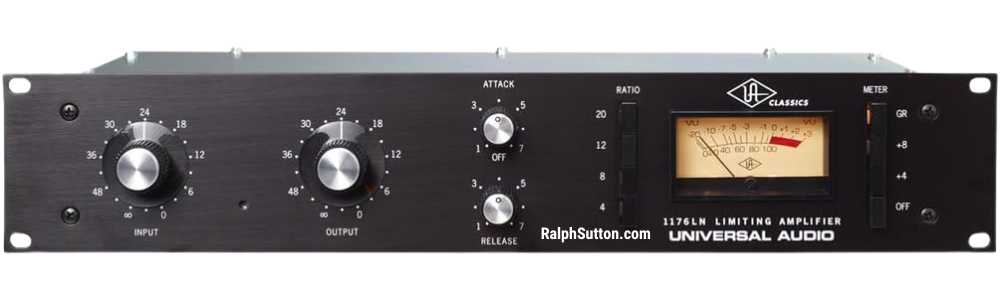

✅ 1176LN Peak Limiter
Why I Use It
The 1176LN is my go-to for lead vocals when I need boldness, clarity, and control. It’s faster than most people expect, and it adds a bite that helps a vocal cut through without sounding harsh. I’ll often pair it with a slower optical compressor for additional polish.
Use Case
- Strong, expressive singers
- Funk, R&B, and Gospel lead vocals
- Vocal takes that need edge and immediacy
Pro Tip
Set the attack slow and the release fast to let transients breathe while still keeping the vocal anchored in the mix. For exact settings, see The Essential Guide to Analog Outboard Gear.
✅ Teletronix LA-2A Leveling Amplifier
Why I Use It
The LA-2A is all about smoothness. I use it when I want the compressor to ride the vocal without drawing attention to itself. It has a tube warmth that flatters almost any voice, especially in Jazz and R&B. When I’m recording a singer with a softer delivery or an expressive vibrato, the LA-2A helps preserve that emotion.
Use Case
- Jazz and Soul vocalists
- Soft or breathy singers
- Background vocals or harmonies that need consistency
Pro Tip
The LA-2A works well as the second compressor in a vocal chain, after a 1176. It catches the remaining peaks and adds a nice finish. I rarely have to dial in much, just a light touch goes a long way.

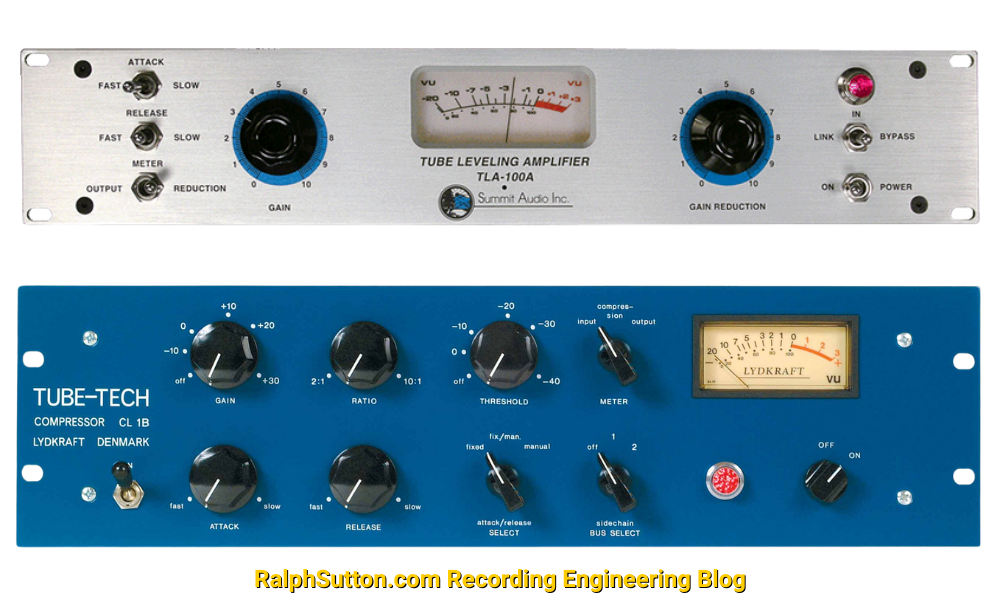

✅ Summit Audio TLA-100A vs. Tube-Tech CL 1B
Why I Use It
The TLA-100A gives me the control of an optical compressor with a more modern feel than the LA-2A. It’s smooth, warm, and highly musical, but it’s also more flexible when it comes to attack and release response. I like it for vocalists who sit in the middle not too aggressive, not too delicate and for situations where I want that tube tone without going full vintage.
Use Case
- R&B and Jazz crossover vocalists
- Midrange-heavy vocals that need shaping
- Spoken words or narration where tone matters as much as level
Pro Tip
I use the TLA-100A when I want something in between the LA-2A and a modern VCA-style compressor. It’s forgiving but responsive, and it’s a great first or second compressor in a chain.
Where to Find It
The Summit TLA-100A is available in hardware only. There are plugin versions from Softube and Universal Audio that do a good job modeling its tone, but the real box has a depth that makes it worth seeking out.
Tube-Tech CL 1B Comparison
The Tube-Tech CL 1B offers more control with its fully variable attack, release, threshold, and ratio. It’s my choice when I want to shape a lead vocal with detail while keeping it musical. I reach for it when a vocal needs more control without sounding compressed.
Key Differences
- The CL 1B gives you detailed control, great for precision and lead vocal shaping
- The TLA-100A is faster to set up and adds a rounded, warm tone with less fuss
Section 3: Drum Compression
🥁 Punch, Snap, and Control
Drums are where compression becomes both an art and a weapon. Whether it’s the snap of a snare, the thump of a kick, or the overall tightness of the kit, the right compressor can make a groove feel locked in and powerful without sounding overworked.
These are my go-to compressors when recording or mixing drums tools I trust to help drums hit with purpose while maintaining their natural tone.

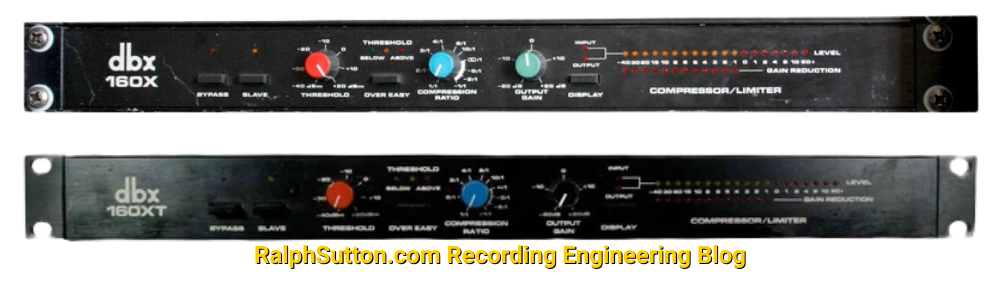

✅ DBX 160X / 160XT
Why I Use It
The DBX 160X and XT are staples in my drum workflow. They’re simple, punchy, and fast perfect for shaping individual elements like snare and kick without overcomplicating the process. There’s a recognizable snap they bring to the transient that makes drums feel alive and present.
Special Note: DBX (now part of Harman International) does not currently manufacture the dbx 160X or 160XT compressor/limiters. These models were popular in the past and are now considered vintage. There are some available at Vintage King Los Angeles
Use Case
- Snare drum (top mic)
- Kick drum (for extra punch)
- Percussion with sharp transients
Pro Tip
I keep the ratio around 4:1 and let the threshold just kiss the peaks. Too much gain reduction flattens the impact, so the trick is subtlety. If you’re recording multiple takes, consistency is key this compressor helps glue a performance together.
Mic Pairing Tip
For snare top, I use either a Shure SM57 or Sennheiser MD 421 depending on the tone I’m after. On the snare bottom, I always use an AKG C451 B, positioned slightly off center from the snares to capture both the rattle and a bit of low-end thud.
✅ 1176LN (Revisited for Drums)
Why I Use It
The 1176 is just as powerful on drums as it is on vocals. When I want aggressive energy, especially for snare or parallel drum compression, this unit delivers. It grabs quick transients and adds character that blends well with both acoustic and funk-inspired grooves.
Use Case
- Snare (for smack and body)
- Overheads (when controlled sparkle is needed)
- Parallel drum compression (during mixing)
Pro Tip
The “All Buttons In” mode creates harmonic grit and a smashed, explosive feel that works beautifully in parallel. I use it to add excitement without changing the integrity of the raw drum sound.
✅ Ralph Sutton’s Parallel Drum Compression Chain
Why I Use It
Parallel compression on drums lets me keep the natural, dynamic sound of a live drum kit while adding controlled intensity underneath. I run a full drum mix (close mics and room) to a stereo aux return and apply heavy compression, then blend it in with the dry drums.
Typical Setup
- Send: Close mics and overheads (post-fader)
- Compressor: 1176 (All Buttons In), or sometimes a Distressor set to medium ratio
- EQ (optional): Slight boost around 60 Hz and 5 kHz to reinforce punch and snap
- Return: Blended underneath the dry drums to taste
Result
This gives me power and presence without flattening the kit. It’s especially useful in Funk and modern Soul where drums need to be upfront but still feel in the groove.
Section 4: Bass Compression
🎸 Why Bass Needs Both Control and Character
Bass is the anchor of the groove. It needs to sit deep in the mix without getting lost or dominating the low end. Compression helps shape the attack, control the sustain, and tighten the performance so that it plays well with the drums and the rest of the rhythm section.
Depending on the player and the style, I choose one of two core compressors or a combination of both to get the bass exactly where I want it.
✅ Teletronix LA-2A Leveling Amplifier
Why I Use It
The LA-2A is my go-to when I need warmth and smoothness on bass. It’s slow and gentle, which makes it ideal for smoothing out performances without clamping down too hard. I use it during tracking or mixing when the bass player has good dynamics but needs a little help staying consistent.
Use Case
Upright bass in Jazz sessions
Electric bass with fingers or flatwounds
Funk and Soul grooves that benefit from a thick, even low end
Pro Tip
Sometimes I’ll hit the LA-2A first during tracking, just kissing the gain reduction, and then come back in the mix with a 1176 for added punch. It’s a classic combination that gives me depth and presence at the same time.
✅ 1176LN Peak Limiter (on Bass)
Why I Use It
The 1176 gives me attack and edge. It’s great for shaping bass when I want it to pop through the mix, especially with slap or pick-style playing. I usually use it in the mix stage, either on its own or after an LA-2A.
Use Case
Funk or R&B bass with aggressive playing
Tracks where the bass needs bite and definition
Slap bass or syncopated grooves
Pro Tip
Use a medium-slow attack and fast release. That preserves the initial note while tightening the sustain. This approach adds groove without adding mud.
✅ Blended Bass Chain (Tone + Punch)
Why I Use It
When I need both fatness and punch, I’ll blend a direct signal compressed with the LA-2A and a miked amp compressed with the 1176. The LA-2A gives me low-end body; the 1176 gives me presence and bite. Together, they create a full-range bass tone that sounds natural but powerful.
Typical Setup
DI Chain: Clean DI box into LA-2A, minimal reduction (1-3 dB)
Amp Chain: Mic’d cabinet (MD 421 or RE20) into 1176, moderate compression
Blend: Balanced in the mix to support the track’s groove and harmonic structure
Result
This blended setup works beautifully in live studio recordings where the bass needs to sound both modern and classic, like it’s being played right in front of you.
Section 5: Mix Bus Compression
🧩 Glue, Energy, and Cohesion
Once all the elements are in place, vocals, drums, bass, keys, guitars, the final step is shaping how they move together. Mix bus compression isn’t about fixing anything. It’s about gluing your mix together so it feels unified, musical, and emotionally impactful.
I approach mix bus compression with a light touch. The goal is to retain punch and movement while bringing the mix forward in a natural way.

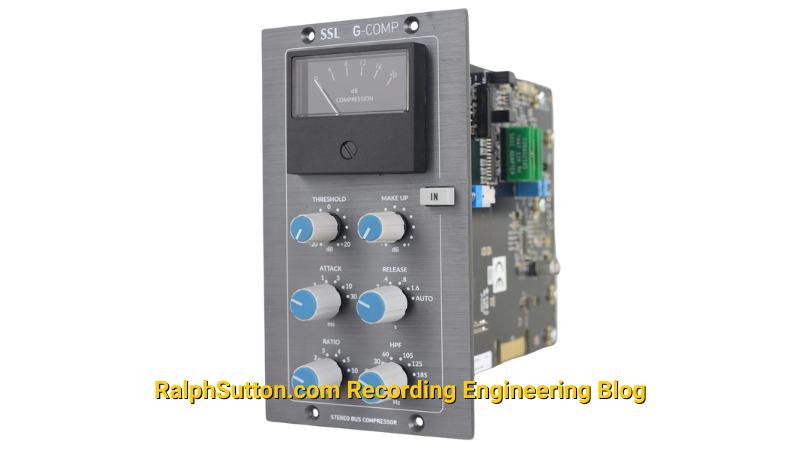

✅ SSL G-Series Bus Compressor (or Plugin Equivalent)
Why I Use It
The SSL-style bus compressor is legendary for a reason. It brings the mix together and adds just the right amount of punch without ever feeling heavy-handed. I use it when I want a little more bounce and cohesion, especially on Funk, R&B, or upbeat Jazz sessions.
Use Case
- Final mix glue for modern analog sessions
- Upbeat tracks that need dynamic control without killing the feel
- Horn-driven mixes and rhythm section-heavy arrangements
Pro Tip
Keep the ratio low (2:1), with a slow attack and fast release. I rarely go past 2 dB of gain reduction. Less is more here, the magic is in the subtlety.
✅ LA-2A or Pultec Trick (Vintage Warmth Option)
Why I Use It
If I want a vintage or laid-back sound, I’ll sometimes skip the VCA-style compression and use a tube unit like the LA-2A on the mix bus. Other times, I’ll run the mix through a Pultec EQP-1A just for the gain staging effect and roundness, not even using any EQ boost. That transformer saturation can be enough to give a mix depth and color.
Use Case
- Ballads and laid-back groove tracks
- Vintage-style Jazz or Soul productions
- When warmth and roundness are the priority

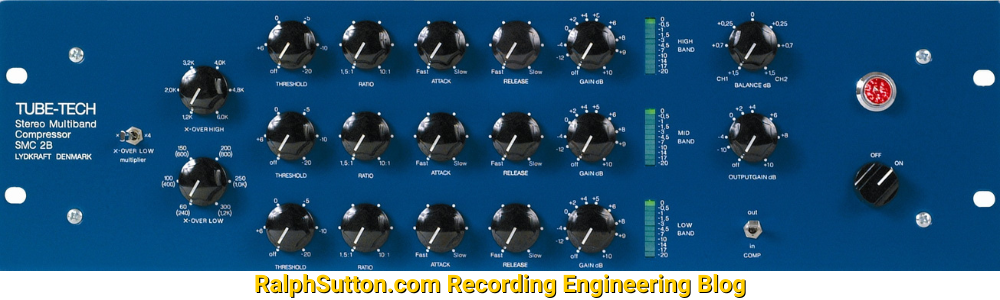

✅ Tube-Tech SMC 2B Multiband Opto Compressor
Why I Use It
The SMC 2B is one of my favorite high-end mix bus work tools. It’s a true three-band optical compressor, and while it’s capable of deep shaping, I use it for something more subtle, the sound of the unit itself. The tube path adds a depth and polish that makes the entire mix feel finished, even when barely touching the meters.
Use Case
- Full stereo mixes that need warmth without dulling
- Complex arrangements that benefit from multiband control
- High-fidelity Jazz, Funk, and Soul sessions where the stereo image matters
Pro Tip
I’ll often dial in just a touch of compression, maybe a dB in the low band, even less in the mids and highs. I’m not trying to control the mix. I’m letting the tone of the unit enhance what’s already there. This approach has always given me better results than trying to force the sound into place.
🎯 Section 6: Frequently Asked Questions
- What’s the difference between fast and slow compression?
Fast compression (with short attack and release times) reacts quickly to transients, great for controlling peaks or adding edge, like on snare or vocals. Slow compression lets more of the initial sound through, making it feel more open and natural. I often use a combination of both, depending on the source and style.
- Should I use compression while recording or only during mixing?
I do both. If you have the right gear and know your vocalist or player, compressing lightly while tracking can give you a more polished sound upfront. But I keep it gentle, maybe 1–3 dB of reduction, and always leave headroom for mixing later.
- What’s a good first compressor to buy for vocals?
If you’re on a budget, a good 1176-style compressor (hardware or plugin) is a solid starting point. It works on almost any source and teaches you a lot about gain staging and transient control. If you can pair it later with a smooth optical unit like an LA-2A, you’ll be set for just about anything.
- Can I use plugins instead of hardware compressors?
Absolutely, especially when you’re starting out. Many plugin emulations of the 1176, LA-2A, DBX 160, and others get you close. But in my experience, hardware still has a presence and musicality that plugins can’t fully replicate. That said, use what you have, learn the tools deeply, and upgrade when it makes sense for your workflow.
- What’s the best compressor for Funk or R&B drums?
I always come back to the DBX 160X for kick and snare. It’s punchy, fast, and tight. If I want something more aggressive or character-driven, I’ll bring in a 1176 or hit a drum bus with parallel compression using both. These genres are all about feeling, and compression plays a huge role in locking that in.
- How do I know if I’m over-compressing?
If the performance feels flat or lifeless, or if the transients have disappeared, you’ve probably gone too far. Also listen for pumping, loss of punch, or unnatural volume swings. My rule: compress to support the emotion, not to squeeze the life out of it. A light hand and good monitoring will tell you what you need to know.
